Introduction

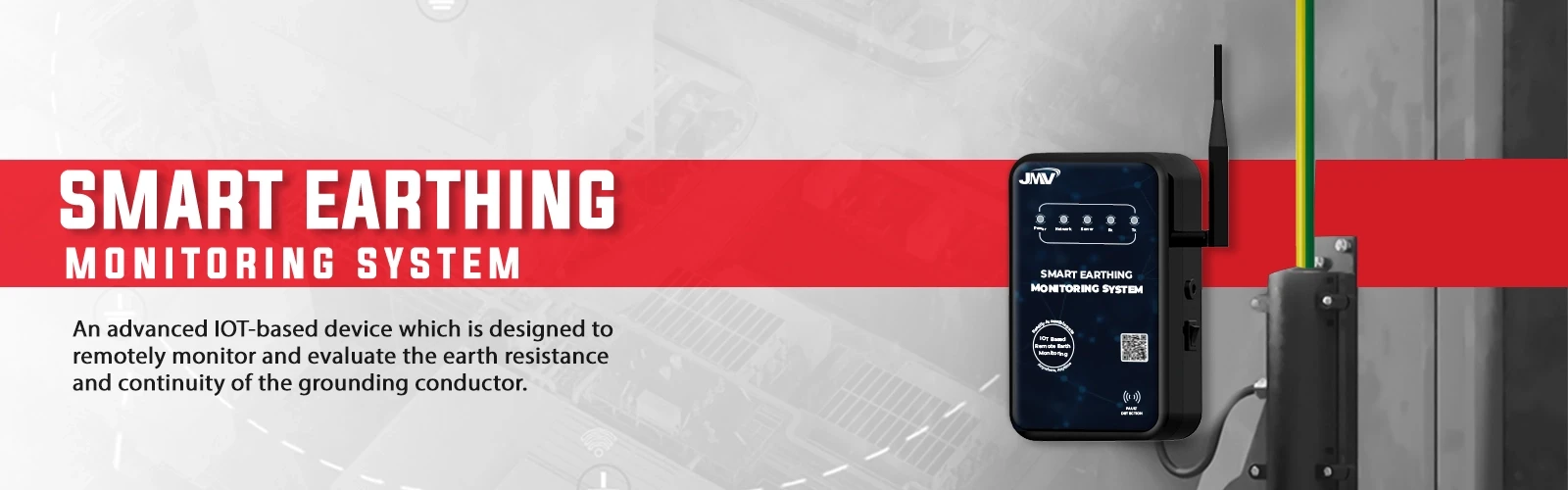

The Smart Earthing Monitoring System (SEMS) is an AI-powered, IoT-based solution designed for continuous monitoring and evaluation of grounding resistance. It addresses the challenges posed by fluctuating ground resistance values due to varying environmental conditions such as moisture, temperature, and terrain. SEMS is designed to ensure the reliability and proper functioning of grounding systems, offering remote monitoring capabilities and real-time data access through web portals and mobile applications. This advanced system is crucial for maintaining safety and operational efficiency across various applications.

Salient Features

• Remote monitoring of grounding system resistance and continuity.
• Seamless IoT connectivity for data transmission.
• Alerts and notifications based on predefined resistance thresholds.
• Ideal for use in rocky areas, hilly regions, and confined spaces.
• Cloud-based data storage for efficient real-time data handling.
• Centralized monitoring of multiple grounding systems.
• Real-time data access via mobile application and web portal.
• Future-proof technology to meet modern requirements.

Technical Specifications

• Power Supply: 24V DC
• Power Consumption: 150mA @ 24V
• Working Temperature: -10℃ to 85℃, 20% RH ~ 90% RH
• Range: 0.01 Ω ~ 100 Ω
• Resolution: 0.001 Ω
• Mounting: Wall Mount / DIN Rail
• Accuracy: ±2% @ ±3° at temp (20℃ ±5℃ below 70% RH)
• Alarm & Indication: Yes
• Alarm Setting: System Software Based
• Communication Mode: RS485
• Degree of Protection: IP65
• Sensor: Clamp Type
• Response Time: <50ns

Applications

• Railway Signaling Gears
• Electrical Substation Yards
• Airports
• Defense & Military Sectors
• Telecommunication Industries
• Solar Power Plants
• Oil and Gas Industries
